4. API Access

API Access

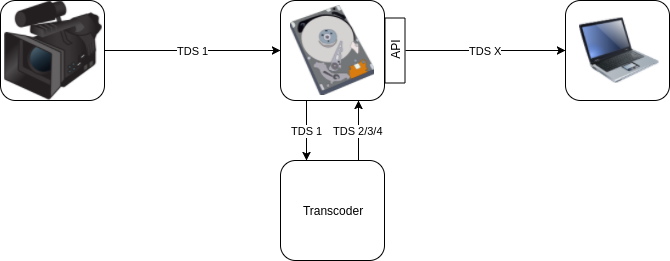

Scenario

  • A camera captures video in a raw format and streams it onto the network
  • A storage device captures this network stream and stores the TDS to disk
  • A transcoder converts this raw TDS into a set of coded H.264 TDSs at different bitrates
  • The storage device exposes an API providing access to this content
  • An API client knows about TDS 1, but not about the alternative representations. It can only accept H.264 bitstreams

Behaviour & Options

  • The client makes a request to the API for content related to TDS 1, but in a coded format it can interpret. It could work with any of TDS 2, 3 and 4, but needs to be able to request them in a common way.

Content API

  1. GET /TDSs/:id - Returns Data Objects for a single TDS
  2. GET /TDSs/?similarity_cluster=X - Returns a list of TDSs to choose from
  3. GET /similarity_cluster/:id - Returns Data Objects from any TDS which is part of this Similarity Cluster

For both (2) and (3), some notion of a Similarity Cluster is necessary in order to return TDSs which are alternative representations of the camera's output.

In (3), assuming some parameters are passed to the API indicating the formats which the client supports, it can supply Data Objects without the client having to know exactly what is held within the store.

Content Segment Retrieval

In order to retrieve specific portions of stored TDSs, Time Values can be used to restrict the range of Data Objects returned by the API.

If TDSs have been stored using different Time Contexts, it would be impossible to address them directly within a Similarity Cluster using the same Time Values. As such, it is important that Similarity Clusters restrict their contents to elements which use the same Time Context.

Alternatives

  • Grouping of TDSs could be defined manually. This would limit their scope to within single devices, or a collection which shared the same grouping mechanisms. Manual association of similar TDSs would be more likely to result in errors.
  • TDSs could use different Time Contexts within a Similarity Cluster. This would then move the complication of dealing with Time Context mapping to the API layer, making interactions more complex for the client.
